Rack Pinion Hoists
Rack and Pinion for Hire
Our GEDA rack & pinion hoists have a wide range of platforms, lifting heights, load capacities and hoisting speeds along with special accessories which enable the flexible use of the rack and pinion hoists so they can be completely customised to on-site conditions. Regardless of whether the work is carried out on new build projects, façade works, or comprehensive renovations, rack and pinion elevators can meet almost every construction site requirement. We offer material hoists as well as goods and passengers hoists.

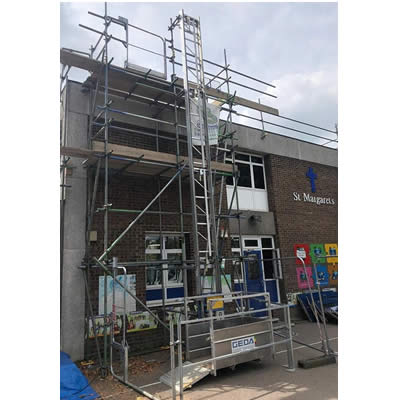

GEDA-200Z
Specifications
Goods Hoist
Reach Height - 35m
Power - 230v. 50hz 3x16a 1 Phase
Lifting Capacity - 200kg
Platform Dimension - 0.8 x 1.4m
Reference Code: GH30

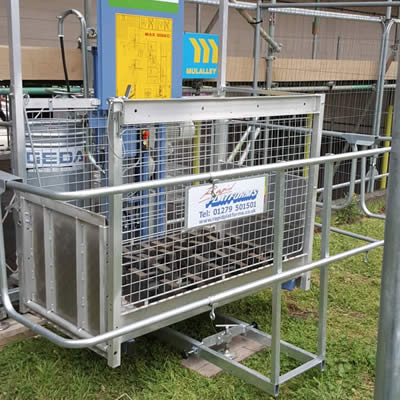

GEDA-300Z
Specifications
Single Barrow Goods Hoist
Reach Height - 50m
Power - 230v. 50hz 13x6a 1 Phase
Lifting Capacity - 300kg
Platform Dimension - 0.8 x 1.4m
Reference Code: GH50SB

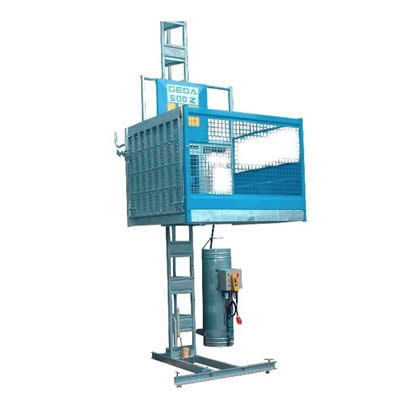

GEDA 500Z
Specifications
Goods Hoist
Reach Height - 100m
Power - 5.5kw 400v. 50hz 5x16a 3 Phase
Lifting Capacity - 500kg
Platform Dimension - 1.4 x 1.6m
Reference Code: GH100
GEDA 500ZZP
Specifications
Goods & Passenger Hoist
Reach Height - 100m
Power - 6.1kw 400v. 50hz 15.6a 3 Phase
Lifting Capacity - i) 500kg (Passenger only mode; 5 people maximum) ii) 850kg (Goods only mode)
Platform Dimension - 1.4 x 1.6m
Reference Code: GH100ZZP

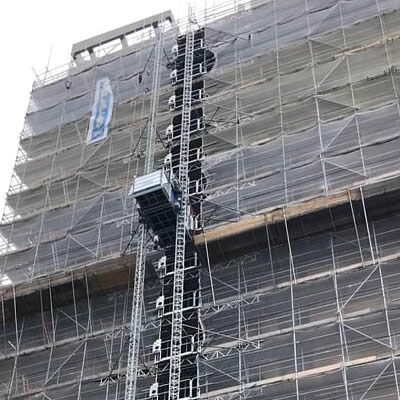

GEDA 1500ZZP
Specifications
Goods & Passenger Hoist
Reach Height - 100m
Power - 6.1kw 400v. 50hz 15.6a 3 Phase
Lifting Capacity - Load capacity (persons/materials mode) 1500kg, maximum 7 persons (materials only mode) 2000kg
Platform Dimension - 1.45 x 3.3m
Reference Code: GH1500ZZP
